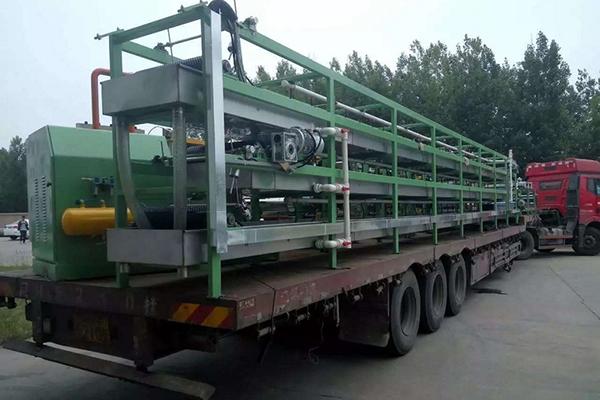

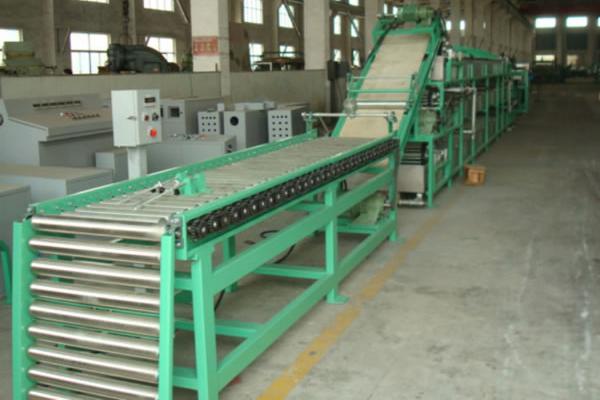

Rubber Tyre Tread Extrusion Line
Applications
Rubber tire tread extrusion lines are used for cooling and cutting extruded tire threads. They are widely used in the production of a variety of tires, cycle tires, tractor tires, agricultural tires, motorcycle tires, light truck tires, engineering tires, special-purpose tires for mine, complete steel radial tires, semi-steel car tires, renovated tires and other tire types.
Parameters
We provide customized machines to meet exact customer requirements.
| Production line speed (m/min) | 5-25m/min |
| Roller surface width (mm) | 650 |
| Extraction height (mm) | 900 |
| Collecting temperature (℃) | ≤40 |
| Tread cutter | Max. thickness of the tread cutting: 20mm |
| Maximum cutting width (mm) | 450 |
| Cutting angle range | 35°±5° |
| Tolerance of cutting length | ±3 |
| Cutting frequency | 10-15 cuts/min |
| Compressed air pressure (MPa) | 0.6-0.8 |
| Total motor power (kw) | 23.3 |
| Cooling water consumption (m3/h) | 50-60 |
| Dimension (L×W×H) (mm) | 28000x2000x2800 |
| Weight (kg) | 20000 |
